Multi Function Keystroke Tester , Force Testing Machine Compression

Multi Function Keystroke Tester , Force Testing Machine Compression

  • Multi Function Keystroke Tester , Force Testing Machine Compression
  • Multi Function Keystroke Tester , Force Testing Machine Compression
Multi Function Keystroke Tester , Force Testing Machine Compression
পণ্যের বিবরণ:
উৎপত্তি স্থল: চীনে তৈরী
পরিচিতিমুলক নাম: Infinity Machine
সাক্ষ্যদান: CE, ISO
Model Number: RS-6900A-A2
প্রদান:
Minimum Order Quantity: 1 set
মূল্য: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
যোগাযোগ
বিস্তারিত পণ্যের বর্ণনা
Driving method of X-Y axis: Servo motor from Panasonic Transducer: 50N(5kgf)1000N(100kgf)
Range of driving: 0~150mm or specified by user Test range of displacement: 0~150mm
Max size of specimen: W300xD300mm Size of main unit: W765xD895mmxH1250mm
Weight: About 250kg Size with table: W1400xD900xH1900mm
লক্ষণীয় করা:

keyboard key tester

,

button pull test machine

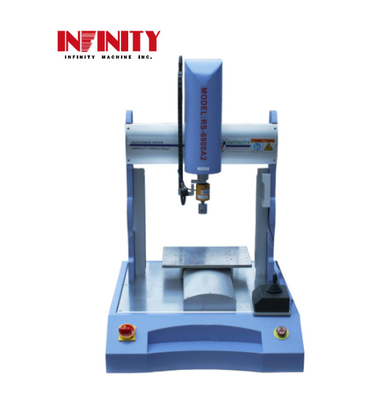

Multi Function Keystroke Tester , Force Testing Machine Compression



Model: RS-6900A-A2



Application:



This Keystroke Force Tester is controlled by X,Y,Z axes, it is suitable for the button force test, the compression for electronic products, the 3 points bending test, 4points bending test.



Specialties:



1. This machine is moved by X, Y, Z axes, X,Y are to move the testing platform, so that can realize the multi-points compression test for the buttons

    force test and the electronic products compression test; Z axis is connected to the transducer to apply the test force ,collect the test force and

    control the compression time.



2. The system is controlled by computer professional software, can set the test force, test time, test cycles, and test speed, and can collect the test

    force ,test time, test speed to generate the test graph.



3. X,Y,Z axes are driven by servo motor from Japanese Panasonic to drive; transmission by precise ballscrew which can achieve the low noise and

   long durability.



4. This machine is equipped with a controlled box, the operator can also use the box for the tester setting.



5. This machine is table top type, a special table as the accessory.



6. Chinese or English interface can be optional . The unit (N,Lb,gf,kgf) can be switched freely .



7. The testing method can be set, saved and called for use from the saving record . The data and curve can be printed directly



8. The life damping curve can be created, the test report can be converted to Excel and PDF file format.



Typical Application:



1. The Multi-points compression

2. Button force testing

3. The 3pts and 4pts bending test



The standard accessories of the machine:



1. Compression pads( according to custom requirement)

2. 3Points bending fixture

3. 4Poionts bending fixture

4. Computer (DELL)installed with WIN 7 system, and professional test software.

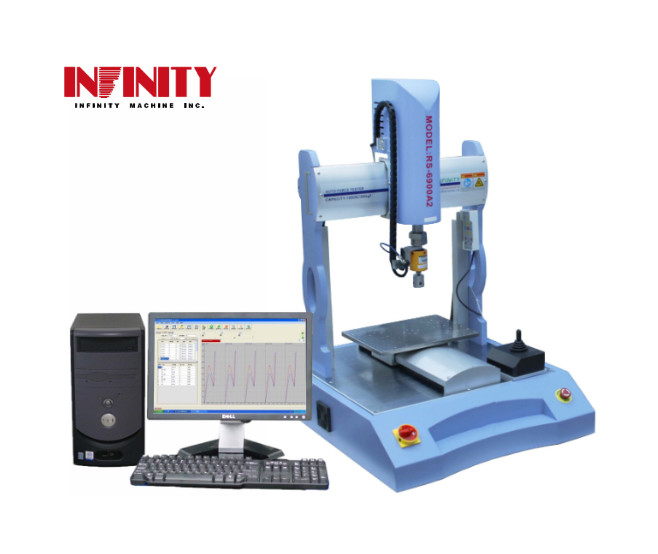

5. Table as shown in the machine picture.

6. Hand control box.

7. Tools( screw drivers)



Technical parameters:



 Model  RS-6900A-A
 Driving method of Z axis  Servo motor of Japanese Panasonic
 Transducer  50N(5kgf)1000N(100kgf)

 Range of driving (up and down)

 0~150mm
 Test range of load  0~50N(5kgf)or 0~1000N(100kgf)
 Resolution of load  0.01N
 Accuracy of load  ±0.5%F.S
 Test range of displacement  0~150mm
 Resolution of displacement  0.001mm
 Accuracy of displacement  ±0.03mm
 Range of test speed  0.1~150mm/min
 Driving method of X-Y axis  Servo motor from Panasonic
 Control way  X:(right and left) Y:(forward and backward)
 Driving range  X:0~300mm Y:0~300mm
 Resolution of displacement  0.002mm
 Accuracy of displacement  ±0.05mm
 Range of moving speed  5~200mm/sec
 Max size of specimen  W300xD300mm
 Weight  About 250kg
 Size of machine  W765xD895mmxH1250mm
 Size with table  W1400xD900xH1900mm



Package:



Multi Function Keystroke Tester , Force Testing Machine Compression 0



Multi Function Keystroke Tester , Force Testing Machine Compression 1



Multi Function Keystroke Tester , Force Testing Machine Compression 2
