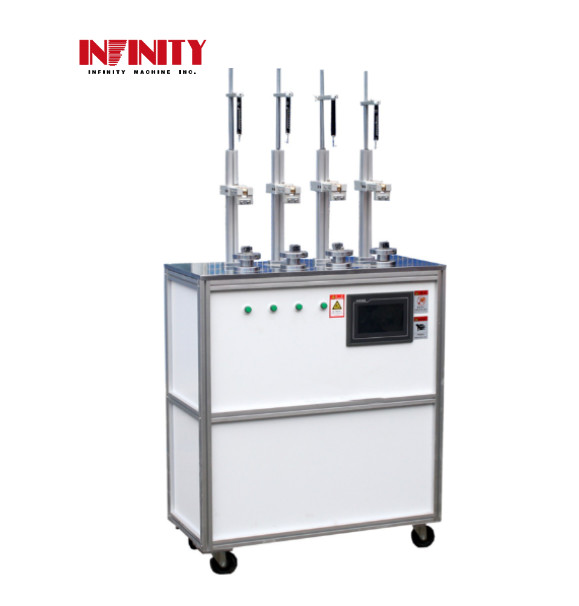

Multi Cord Wire Bending Test Machine Electrical Conductivity Test Short Circuit

Multi Cord Wire Bending Test Machine Electrical Conductivity Test Short Circuit

  • Multi Cord Wire Bending Test Machine Electrical Conductivity Test Short Circuit
Multi Cord Wire Bending Test Machine Electrical Conductivity Test Short Circuit
পণ্যের বিবরণ:
উৎপত্তি স্থল: চীনে তৈরী
পরিচিতিমুলক নাম: Infinity Machine
সাক্ষ্যদান: CE, ISO
Model Number: RS-8106B
প্রদান:
Minimum Order Quantity: 1 set
মূল্য: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
যোগাযোগ
বিস্তারিত পণ্যের বর্ণনা
Test angle range: 0~180° Min-angle display:
Test speed: 10~60times/min Counter: 0~999,999
Load: 50g, 100g, 150g, 250g, 300g Dimension: 800x360x1460mm
Weight: 135kg Power supply: AC220V , 50Hz, 5A or specified by user
লক্ষণীয় করা:

flex tester machines

,

cable testing machine



Multi Cord Wire Bending Test Machine Electrical Conductivity Test Short Circuit



Model: RS-8106B



Purpose:



It is suitable for multi-core cable, communication cable, flat cable and signal line to do bending test. Test method is: short-circuit clamping one end of wire and fastening it on the rotary disc, leaving it rotating right and left hanging certain load, to assess whether wire is in good conduction after certain test cycles (can be set).



Specification:



 Model  RS-8106B
 Test angle range  0~180°
 Min-angle display  1°
 Test speed  10~60times/min
 Counter  0~999,999
 Load  50g, 100g, 150g, 250g, 300g
 Dimension (WxDxH)  800x360x1460mm
 Weight  135kg
 Power supply  AC220V , 50Hz, 5A or specified by user
