Shoe Lace Abrasion Testing Machine Life Span , Din Abrasion Tester

Shoe Lace Abrasion Testing Machine Life Span , Din Abrasion Tester

Shoe Lace Abrasion Testing Machine Life Span , Din Abrasion Tester

পণ্যের বিবরণ:

উৎপত্তি স্থল: চীনে তৈরী
পরিচিতিমুলক নাম: Infinity Machine
সাক্ষ্যদান: CE, ISO
Model Number: RS-8309

প্রদান:

Minimum Order Quantity: 1 set
মূল্য: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
এখন যোগাযোগ
বিস্তারিত পণ্যের বর্ণনা
Weight: About 75kg Abrasion stroke: 76±2mm
Test speed: 100±5 times/min Test amount: 6 sets
Hole: Dia.4.5mm Dimension: 770x660x540mm
Power: AC220V 3A or specified by user

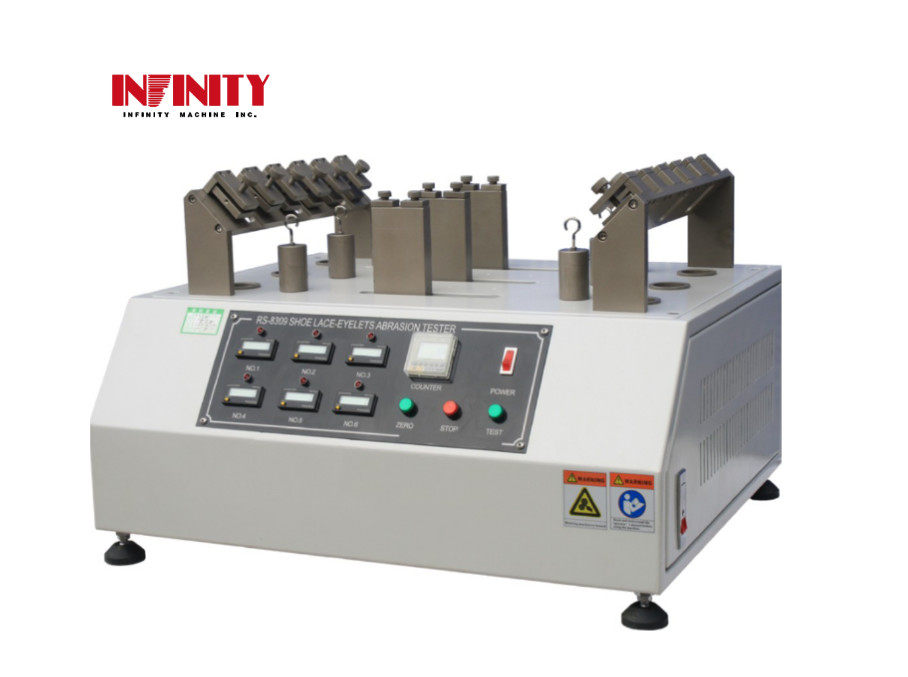

Shoe Lace Abrasion Testing Machine Life Span , Din Abrasion Tester



Model: RS-8309



Purpose:



This tester simulates the lace under the reciprocal abrasion at a specified tension to test the longevity. The movable site is driven by motor at 60r/min to create reciprocally horizontal movement with a stroke of 35mm. The test will not be performed until specimen breaks and or reaches the rated cycles.



Specification:



 Model  RS-8309
 Weight  455±5g
 Abrasion stroke  76±2mm
 Test speed  100±5 times/min
 Test amount  6 sets
 Hole  Dia.4.5mm
 Fiberboard size (WxDxL)  25x3x25mm
 Dimension (WxDxH)  770x660x540mm
 Weight  About 75kg
 Power  AC220V 3A or specified by user
