| উৎপত্তি স্থল: | চীনে তৈরী |
| পরিচিতিমুলক নাম: | Infinity Machine |
| সাক্ষ্যদান: | CE, ISO |
| Model Number: | RS-8220A-A3 |
| Minimum Order Quantity: | 1 set |
|---|---|
| মূল্য: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Max. height: | 600~1400mm | Control way of ropped ball: | DC electromagnetic control |
|---|---|---|---|
| Steel ball weight: | 112g, 198g, 225g, 357g, 533g, 1042g, 2280g | Dimension: | W720 x D760 x H2000mm |
| Weight: | 210Kg | Power supply: | AC220V 50/60Hz 1A |
| লক্ষণীয় করা: | impact resistance tester,ball drop machine |
||

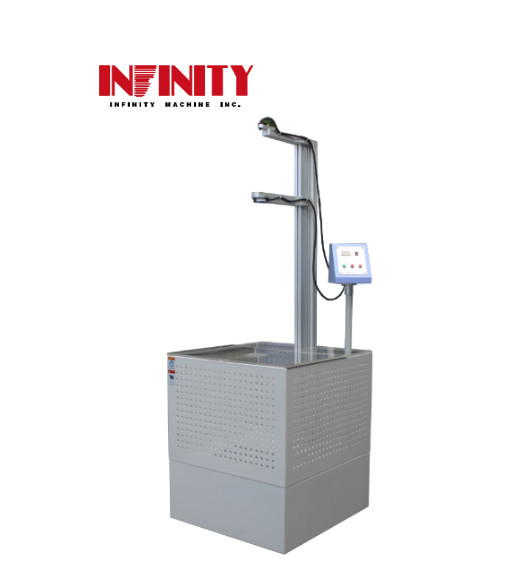

JIS Standard Plastic Testing Equipment Impact Fastness Test 600 - 1400 mm Height
Model: RS-8220A-A3
Purpose:
This tester is suitable for testing the fastness of plastic, ceramic, acrylic, glass fiber and test coating, etc.
Features:
It adopts DC electromagnet control mode, put the steel ball under the electromagnetic chuck and steel ball is adsorbed automatically; press Drop button, the chuck immediately release steel ball, then steel ball will do free-fall testing to impact specimen surface. Drop height can be adjusted up and down, and with a scale to view the height. And specimen drop height can be known by Infrared mark lamp of impact point.
Key parts of this machine are all quality products with reliable performance, and there are various drop accessories, making your test accurate and effective.
Specification:
| Model | RS-8220A-A3 |
| Max. height | 600~1400mm |
| Control way of ropped ball | DC electromagnetic control |
| Steel ball weight | JIS Standard 112g, 198g, 225g, 357g, 533g, 1042g, 2280g (Standard) |
| Standard GB/T14485: 454g, 761g, 1053g, 1735g (Optional) | |
| Dimension ( WxDxH ) | W720 x D760 x H2000mm |
| Weight | 210Kg |
| Power | AC220V 50/60Hz 1A or specified by user |
Picture:
