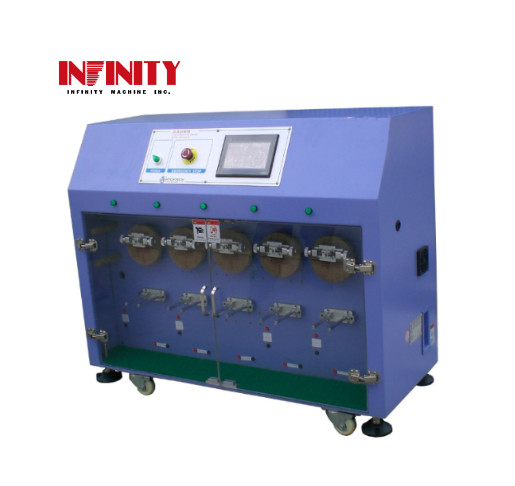

Servo Control Cable Bending Test Machine English Interface Panasonic Motor

Servo Control Cable Bending Test Machine English Interface Panasonic Motor

Servo Control Cable Bending Test Machine English Interface Panasonic Motor

পণ্যের বিবরণ:

উৎপত্তি স্থল: চীনে তৈরী
পরিচিতিমুলক নাম: Infinity Machine
সাক্ষ্যদান: CE, ISO
Model Number: RS-8105A-5

প্রদান:

Minimum Order Quantity: 1 set
মূল্য: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
এখন যোগাযোগ
বিস্তারিত পণ্যের বর্ণনা
Test amount: 5sets Control system: Touch panel+PLC
Driving system: Panasonic servo motor Angle range: 0~±180
Weights: 50g,100g,150g,250g,300g or designated by customer Dimension: W780xD460xH940mm
Weight: About 150kg



Servo Control Cable Bending Test Machine English Interface Panasonic Motor



Model: RS-8105A-5



Purpose:



It is applicable to the bending test for multi-core cables, communication cables, flat cables and signal cables. Test methods: make one end of the cable short connected and clamped, fix it on a rotating disk, and then make it rotate laterally under certain hoisting weight (load) to assess whether the cable is well conducted after the many times.



Specialties:



Driven by Panasonic’s AC servo motor, the product may realize the high-precision positioning with low noise, and it may be used for a long period, with a testing angle of 0~1800 and a resolution of ±10.



Special power rectification circuit is used to improve the long-term service capacity and anti-interference of the motor and execution component.



The FOTEK high-precision optoelectronic switch is used for induction of the zero position, which has a high pulse frequency and is durable.



Japan’s OMRON LCD touch screen is used for program input of the control instrument, and PLC controller is used. Chinese-English interface is available, which is easy to operate and control.



The testing conditions are all set on the touch screen or LCD screen (settings of angle, speed, cycle of tests, cycles of tests completed, retention time of rotation, and retention of N min after N tests).



5 cables may be tested simultaneously.



Each group is provided with signal (conduction test) test cables and indicator lamps. Once the cable is broken in the test (no loop circuit is generated), the indicator lamp at the current location will turn off and the counting will be stopped.



Each group is provided with DC5V power outputs. Maximum current: 3A and power: 15W.



Specification:



 Test amount  5pcs
 Control system  Touch panel+PLC
 Driving system  Panasonic servo motor
 Test speed  1~60cpm±2cpm
 Angle range  0~±1800
 Min display angle  10
 Testing cycles  1~999999 cycles
 Dia.of Rotation plate  80mm
 Weights  50g,100g,150g,250g,300g or designated by customer
 Dimension (WxDxH)  W780xD460xH940mm
 Weight  About 150kg
 Power supply  AC220V 50Hz 10A



Picture:



Servo Control Cable Bending Test Machine English Interface Panasonic Motor
