| উৎপত্তি স্থল: | চীনে তৈরী |
| পরিচিতিমুলক নাম: | Infinity Machine |
| সাক্ষ্যদান: | CE, ISO |
| Model Number: | RS-8401A |
| Minimum Order Quantity: | 1 set |
|---|---|
| মূল্য: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Max. capacity: | 50KN | Test space: | 1000x1000x1200mm |
|---|---|---|---|
| Load magnifying rate: | stepless | Software: | Microcomputer control |
| Motor: | AC servo Motor | Dimension: | 1950x1200x2000mm |
| Weight: | 1550kg | Power supply: | AC220V 5A or specified by user |
| লক্ষণীয় করা: | compression test equipment,digital compression testing machine |
||
Stepless Compressive Strength Testing Machine Computerized For Contaner
Model: RS-8401A
Purpose:
This machine adopts AC inverter motor drive, belt + high-precision ball screw drive, drive the upper platen to complete the pressure operation, accurately enter the (load) condition of the specimen into the microcomputer processor for data processing by high-precision pressure sensor pressure, real-time display: compressive resistance, peak value of compressive resistance (maximum crushing force) displacement (deformation) maximum deformation (when the carton crushing deformation), and print the desired test data.
[Test Standards]: GB/T4857.4 GB/T4857.16 ISO2872, ASTM D642
[Production Criterion]: GB/T16491, TAPPI-T804, JIS-Z0212
Specification:
| Model | RS-8401A |
| Capacity (optional) | 20KN 2T |
| Unit (switchable) | N, KN, Kgf, Lbf, Mpa,Lbf/In2, Kgf/mm2 |
| Load resolution | 1/25,000 |
| Load accuracy | ±1% |
| Load magnifying rate | stepless |
| Test space | 1000x1000x1200mm |
| Test speed | 5~100mm/min |
| Stroke resolution | 0.001mm |
| Software | Microcomputer control |
| Motor | AC motor |
| Dimension (WxDxH) | 1950x1200x2000mm |
| Weight | 1550kg |
| Power supply | AC220V 5A or specified by user |

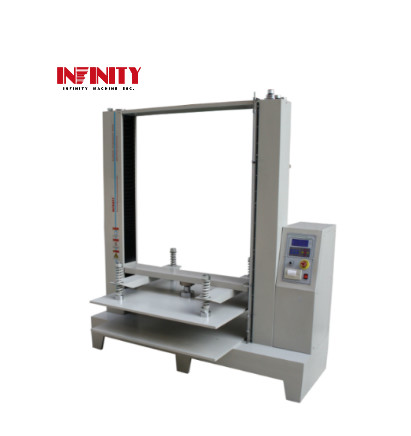

Picture:
