    Max. capacity: 50KN Max. stroke: 1000mm (optional)
    Effective width: 400mm, 500mm (optional) Software: Standard control software
    Motor: AC servo Motor Weight: 345 Kg
    Dimension: 830x670x1940mm Power Supply: AC220V 10A or specified by user
    লক্ষণীয় করা:

    compression test equipment

    ,

    digital compression testing machine

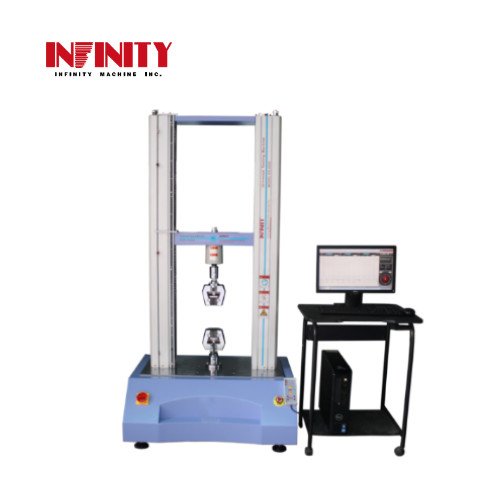

    High Accuracy 50KN Compression Test Equipment / Universal Test Machine


    Model: RS-8000

    Purpose:

    This machine is suitable for adhesive tape, rubber, plastic, sponge, waterproof materials, electric wire & cable, textile, net rope, non-woven fabrics etc, nonmetal materials and metallic thread, metal foil, steel plate and metal rod to do tensile, compression, bending, peeling, cutting, tearing shearing tests.
    Computer control style RS-8000 ( It is used for spot test in production line, can do many data analysis and print the test report, also can used for material’s cyclic test and holding test ).


    Applications:



    Use in testing Adhesive tape, motorcar, ceramics, composite materials, architecture, food, medical equipment, metal wire, rubber, plastic, textile, wood, communication.


    Features:


    High accuracy:

    Adopt AC servo motor to driving the high precise ball screw working, with high precise explosion-proof load cell. Strength accuracy reached to ±0.25% & displacement accuracy reach to 0.001mm.



    High Accuracy 50KN Compression Test Equipment / Universal Test Machine 0



    Language of software: English



    Superior software program:

    Can achieve the closed loop control in force value, speed & displacement, so can satisfy the fatigue test of rubber and durable test of other material in the condition of low cycle. Can record and memorize the whole testing data. And also had many kinds of analysis curve: stress vs strain curve, strength vs deformation curve, strength vs displacement curve, strength vs time curve, time vs deformation curve.



    Multi-function:

    Can coordinate with different grips, the tests of tensile, compression, bending, shearing, tearing, peeling, etc can be done.


    Specification:


     Model  RS-8000
     Capacity (optional)  100N, 200N, 500N, 1, 2, 5, 10, 20, 50KN
     Unit (switchable)  N, KN, Kgf, Lbf, Mpa, Lbf/In2, Kgf/mm2
     Load resolution  1/500,000
     Load accuracy  ±0.25%
     Load range  Rangless
     Stroke (exclude the grips)  800mm,1000mm (optional)
     Effective width  400mm, 500mm (optional)
     Test speed  0.001~500mm/min
     Speed accuracy  ±0.5%
     Displacement resolution  0.001mm
     Software  Closed-loop control software
     Motor  AC servo Motor
     Transmission rod  High accuracy ball screw
     Main unit dimension (WxDxH)  830x670x1940mm
     Main unit weight  345 Kg
     Power Supply  AC220V 10A or specified by user


    Package:

    High Accuracy 50KN Compression Test Equipment / Universal Test Machine 1High Accuracy 50KN Compression Test Equipment / Universal Test Machine 2

    High Accuracy 50KN Compression Test Equipment / Universal Test Machine 3High Accuracy 50KN Compression Test Equipment / Universal Test Machine 4

    High Accuracy 50KN Compression Test Equipment / Universal Test Machine 5High Accuracy 50KN Compression Test Equipment / Universal Test Machine 6
