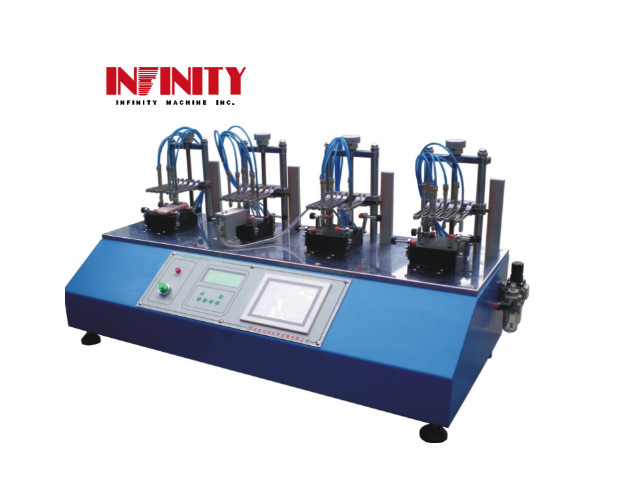

Pneumatic Button / Keystroke Durability Tester, Lifespan Tester LCD Controller

Pneumatic Button / Keystroke Durability Tester, Lifespan Tester LCD Controller

Pneumatic Button / Keystroke Durability Tester, Lifespan Tester LCD Controller

পণ্যের বিবরণ:

উৎপত্তি স্থল: চীনে তৈরী
পরিচিতিমুলক নাম: Infinity Machine
সাক্ষ্যদান: CE, ISO
Model Number: RS-8330A-4

প্রদান:

Minimum Order Quantity: 1 set
মূল্য: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
এখন যোগাযোগ
বিস্তারিত পণ্যের বর্ণনা
Cylinder stroke: 0~10mm Cylinder cycle time: 0.3~9.9sec
Test speed: 10~60times/min available Counter: 0~999,999 adjustable
Size: W1150xD400xH570mm Weight: 110kg
Air source: ≧0.5MPa Power supply: 1∮AC220V 5A



Pneumatic Button / Keystroke Durability Tester, Lifespan Tester LCD Controller



Model: RS-8330A-8B



Application:



Apply for keystoke impact endurance test for mobile, telephone, car entertainment devices, PDA, Bluetooth/ earphone, Automobile TV remote controller, MP3/CD and so on, to check the product’s life-time.



Standard:



IEC60068-2-68; YD/T1539-2006: Mobile handsets reliability technical requirements and test methods



Features:



■ Executing component are high quality; adopt Japan SMC electromagnetic valve & SMC single driving cylinder

Adopt Mitsubishi touch LCD and PLC program controller; Can satisfy impact and sorting test

■ Simulations test; can do front & side load, the load space & pressure value can be adjustable, to satisfy the practical impact circumstance.

■ Testing head space and position can be adjustable; Testing head can move up and down, left and right.

■ 4 stations work separately without any interference each other; A,B,C,D,4 locations work separately(sorting test, Simultaneously test ), no

   interference, can do test at 1 station alone or 4 stations at the same time.

■ The max. test head can be 20pcs; total for 20pcs, including 6mm cylinder:15pcs, 12mm cylinder: 5pcs. test air pressure: 150~1500gf(6mm

   cylinder),500~5000gf(12mm cylinder), satisfy multi-keystoke testing demands, improve testing efficient.

■ Accurate air pressure control; Adopt precision air valve (multi-race valve) with professional measurement device to adjust the pressure,

   with high accurate air pressure control, can actually reflect the keystone’s fatigue status.



Specification:



 Keystones tested Q’TY available  20pcs
 Test heads Q’TY  20pcs (6mm cylinder for 15pcs,12mm cylinder for 5pcs)
 Heads compress  150~1500gf(6mm cylinder),500~5000gf(12mm cylinder)
 Cylinder stroke  0~10mm
 Cylinder cycle time  0.3~9.9sec
 Test speed  10~60times/min available (120times/min---synchronously)
 Counter  0~999,999 available
 Size  W1150xD400xH570mm
 Weight  110kg
 Air source  ≧0.5MPa
 Power supply  1∮AC220V 5A



Structure:



Pneumatic Button / Keystroke Durability Tester, Lifespan Tester LCD Controller



1. Adjust Nut: For adjusting up&down of the test head.

2. Adjust screw:driving the test head moving.

3. Test holder: hold the test head supports, can move left & right.

4. Test head:total 20pcs

5. fixtures:each fixture have 4 adjustable screws to clamp the sample, with side control cylinder supports.

6. Control panel: check the description as below;

7. Precision air pressure adjusting valve & oil-water separator: air inlet-- oil-water separator-- Precision air pressure adjust valve--machine

8. High precision loadcell: test load value.

9. Machine leveling feet:4pcs
