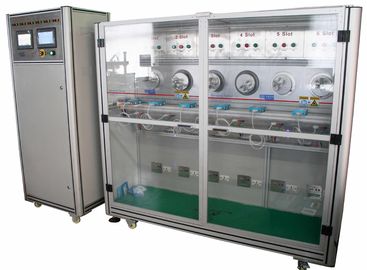

Low Noise Cable Bending Testing Machine With Panasonic Servo Motor Bending Test

Low Noise Cable Bending Testing Machine With Panasonic Servo Motor Bending Test

  • Low Noise Cable Bending Testing Machine With Panasonic Servo Motor Bending Test
Low Noise Cable Bending Testing Machine With Panasonic Servo Motor Bending Test
পণ্যের বিবরণ:
উৎপত্তি স্থল: চীনে তৈরী
পরিচিতিমুলক নাম: Infinity Machine
সাক্ষ্যদান: CE, ISO
Model Number: RS-8116-6A
প্রদান:
Minimum Order Quantity: 1 set
মূল্য: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
যোগাযোগ
বিস্তারিত পণ্যের বর্ণনা
Drive: Six Japanese Panasonic®AC servo motor Reducer: Six Japanese Shimpo® planetary for reducer
Test speed: 1~60rpm±0.5rpm The least angle display: 0.10
Diameter of rotary disk: Ø210mm Dimension: W1780xD860xH1600mm
Total weight: 555kg Power: AC220V 50Hz 12A
লক্ষণীয় করা:

bend test equipment

,

flex tester machines



Low Noise Cable Bending Testing Machine With Panasonic Servo Motor Bending Test



Model: RS-8116-6A



Purpose:



It is suitable for bending resistance test on headphone cable, USB cable, multicore cable conductor, flat cable and signal line, etc. The test method is as follows: Firstly, clamp one end of the wire rod and fasten it to the rotation clamp. Then have it make a horizontal rotation with hanging load to evaluate whether wire rod conduction is good after numerous test cycles.



Feature:



Each of which adopts Japanese Panasonic® AC servo motor drive. They are positioned with high precision, with low noise and can be used for a long time. The test angle is ±1°. Each station adopts Japanese SHIMPO® planetary gear for slowing down with highly precise positioning.



Specification:



 Model  RS-8116-6A
 System control  It adopts Japanese OMRON ®touch screen and  MITSUBISHI®PLC,  and each station works independently.
 Impedance test module  It is equipped with impedance test module and color touch screen.
 Drive  Six Japanese Panasonic®AC servo motor
 Reducer  Six Japanese Shimpo® planetary for reducer
 Test speed  1~60rpm±0.5rpm
 Test angle range  Commonly 0~±950 or 0~±1800, rotation angle of concentric jig is  not  limited.
 The least angle display  0.10
 Test cycles range  1~999999 cycles
 Diameter of rotary disk  Ø210mm
 Weight  Each six of 100g, 225g,300g, 400g
 Main unit dimension  W1780xD860xH1600mm
 Control box dimension  W720xD500xH1700mm
 Total weight  555kg
 Power  AC220V 50Hz 12A



Dimension:



Low Noise Cable Bending Testing Machine With Panasonic Servo Motor Bending Test 0
