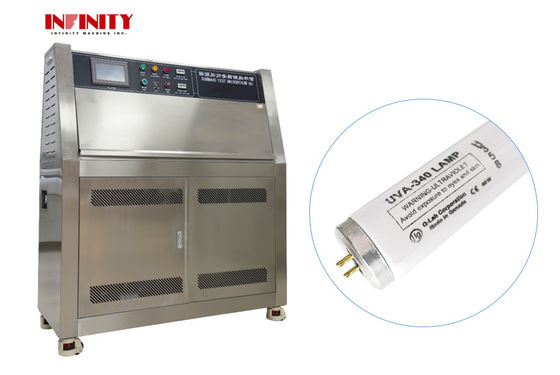

UV Weathering Test Chamber with Automatic Test Cycle SUS304 Stainless Steel and UVA-340 Lamps Environmental Test Chamber

UV Weathering Test Chamber with Automatic Test Cycle SUS304 Stainless Steel and UVA-340 Lamps Environmental Test Chamber

  • UV Weathering Test Chamber with Automatic Test Cycle SUS304 Stainless Steel and UVA-340 Lamps Environmental Test Chamber
  • UV Weathering Test Chamber with Automatic Test Cycle SUS304 Stainless Steel and UVA-340 Lamps Environmental Test Chamber
  • UV Weathering Test Chamber with Automatic Test Cycle SUS304 Stainless Steel and UVA-340 Lamps Environmental Test Chamber
  • UV Weathering Test Chamber with Automatic Test Cycle SUS304 Stainless Steel and UVA-340 Lamps Environmental Test Chamber
UV Weathering Test Chamber with Automatic Test Cycle SUS304 Stainless Steel and UVA-340 Lamps Environmental Test Chamber
পণ্যের বিবরণ:
উৎপত্তি স্থল: চীনে তৈরি
পরিচিতিমুলক নাম: Infinity Machine Inc.
সাক্ষ্যদান: ISO
মডেল নম্বার: IE60 সিরিজ
প্রদান:
ন্যূনতম চাহিদার পরিমাণ: 1
মূল্য: Negotiate
প্যাকেজিং বিবরণ: পরিষ্কার শীট + স্পঞ্জ + কাঠের শক্ত কাগজ
ডেলিভারি সময়: অর্ডার নিশ্চিত হওয়ার 20-30 দিন পরে
পরিশোধের শর্ত: টি/টি
যোগানের ক্ষমতা: প্রতি মাসে 200 সিট
যোগাযোগ
বিস্তারিত পণ্যের বর্ণনা
পণ্যের নাম: UV টেস্ট চেম্বার মডেল: IE60 সিরিজ
তাপমাত্রা পরিসীমা: RT+20℃~70℃ আর্দ্রতা পরিসীমা: ≥90% RH
প্রযোজ্য মান: আইএসও 4892-3 、 আইএসও 11507; এএসটিএম ডি 4329 、 ডি 499 、 ডি 4587 、 ডি 5208 、 জি 154 、 জি 53 ; বৈশিষ্ট্য: সরঞ্জাম নিয়ন্ত্রণের স্বয়ংক্রিয় অপারেশন, স্বয়ংক্রিয় পরীক্ষা চক্র, শ্রম সাশ্রয়, পরীক্ষার দক্ষতা
বক্স কাঠামো: ইনডোর এবং আউটডোর বক্স: SUS304# স্টেইনলেস স্টিল ইনডোর এবং আউটডোর বাক্সে ব্যবহৃত হয় নমুনা ধারক: অ্যালুমিনিয়াম ফ্রেম টাইপ বেস ফ্রেম ভিশন প্লেট, 24 পিসি
শক্তি: ইলেকট্রনিক ওয়ারেন্টি: 1 বছর

UV Weathering Test Chamber Environmental Test Chambers IE6002 IE6002A

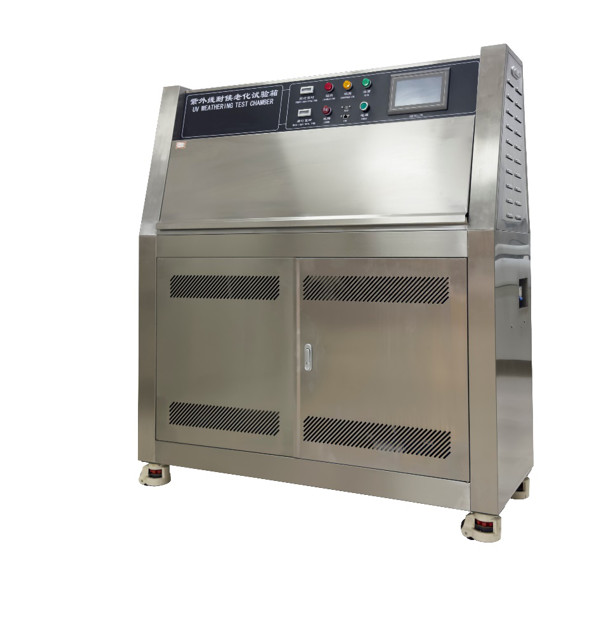

Equipment Overview

UV weathering test chamber uses fluorescent ultraviolet lamps that best simulate the UV spectrum of sunlight, and combines temperature control and humidity supply devices to compare the high temperature, high humidity, condensation, dark rain cycle and other factors that cause discoloration, brightness, strength decline, cracking, peeling, pulverization, oxidation and other damage to the material in sunlight (UV segment). At the same time, through the synergistic effect between ultraviolet light and moisture, the single light resistance or single moisture resistance of the material is weakened or failed, so it is widely used to evaluate the weather resistance of the material.

UV Weathering Test Chamber with Automatic Test Cycle SUS304 Stainless Steel and UVA-340 Lamps Environmental Test Chamber 0
Applicable Standards
  • ASTM D4329, D499, D4587, D5208, G154, G53
  • ISO 4892-3, ISO 11507
  • EN 534; EN 1062-4; BS 2782; JIS D0205; SAE J2020
Key Features
  • Using the original American UV lamp, the light stability is good, and the test results are high reproducibility
  • Provides the best sunlight UV simulation, low maintenance and easy to use
  • Automatic operation of equipment control, automatic test cycle, saving labor, improve test efficiency
Specification Parameters
Parameter IE6002 IE6002A
Temperature range RT+20℃~70℃
Humidity range ≥90%RH
Temperature fluctuation ±0.5℃
Temperature uniformity ≦1.0℃
Center distance inside the lamp 70mm
Distance between specimen and lamp center 50±3mm
Modulator tube UVA-340 L=1200/40W, 8pcs UVB-313 L=1200/40W, 8pcs
Irradiance Adjustable within 1.2W/m² Adjustable within 1.0W/m²
Ultraviolet wavelength 315-400nm 280-315nm
Effective irradiation region 900*210mm
Irradiated blackboard temperature 50℃~70℃
Internal dimension: W*H*D (mm) 1140*400*390
Outside box size: W*D*H (mm) 1300*500*1360
Box structure Indoor and outdoor boxes: SUS304# stainless steel
Sample holder Aluminum frame type base frame vision plate, 24pcs
Standard sample size 75*290mm
Safety protection device Leakage circuit breaker control circuit, overload, short circuit alarm, over temperature alarm, water shortage protection
Power supply AC220V, 50Hz, 5KW
Special specifications need to be specified
Product Packaging

UV Test Chamber will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
